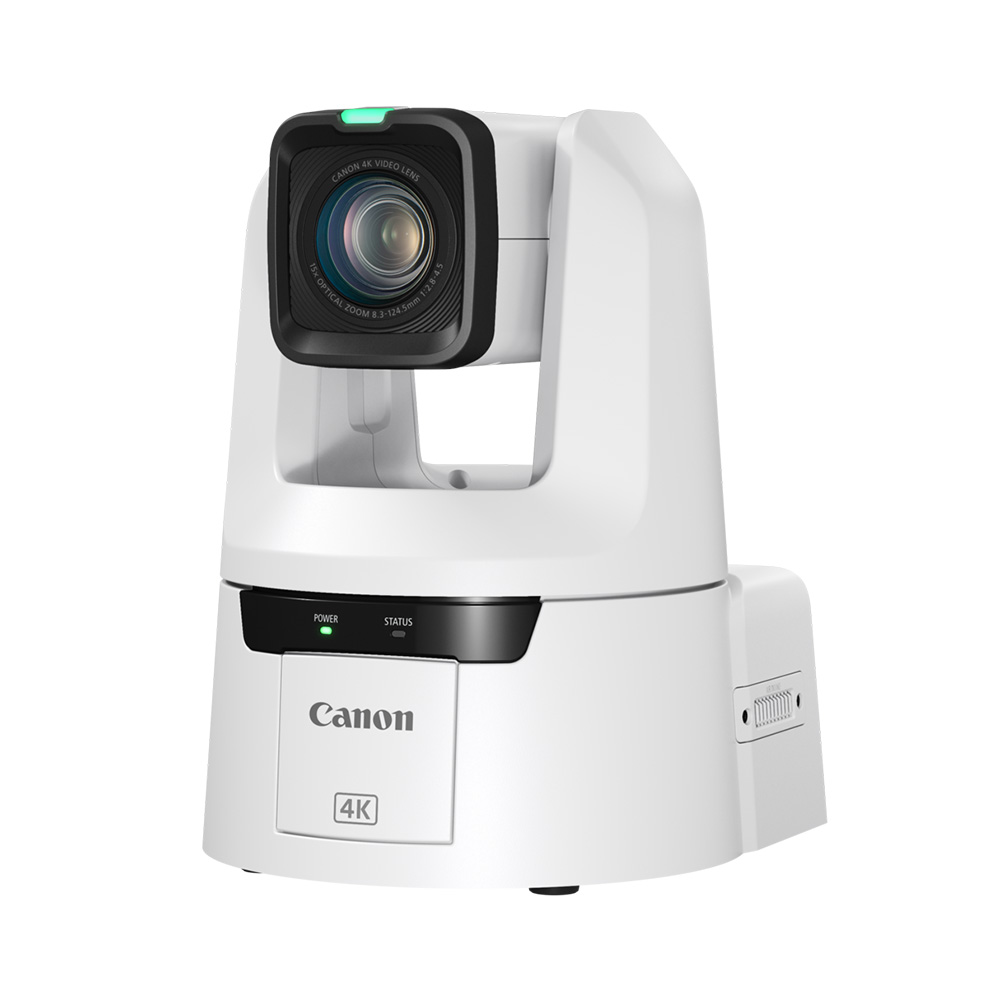

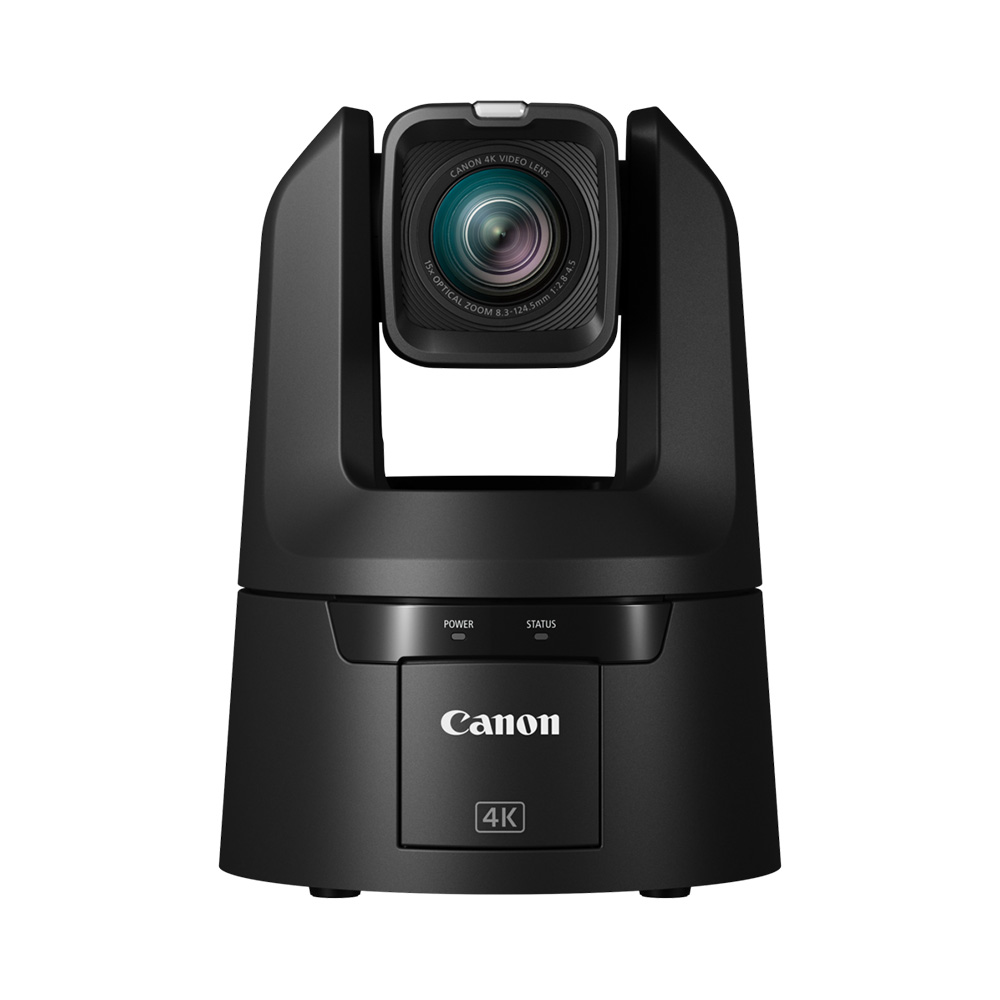

Canon CR-N700




The Canon CR-N700 is a professional 4K PTZ camera aimed at high-end Broadcast, TV Studios and Live Events. With outstanding 4K60P 4:2:2 10-bit HDR image quality, it offers broadcasters highly advantageous features such as Dual Pixel AF with ‘deep learning’ autofocus, 12G-SDI connectivity, multiple protocols for streaming and control as well as region of interest crop capabilities.

4K detail for imaging excellence

A 1.0-Type CMOS sensor and DIGIC DV7 processor deliver 4K UHD 60P imagery in up to 4:2:2 10-bit 12G-SDI and HDMI for broadcast-standard image quality, plus 4K60P over IP.

Accurate Auto Tracking1

Unlock the potential to automatically track the main speaker with face detection as they move on stage. Achieve your ideal tracking setup with multiple adjustments, such as composition size, tracking sensitivity, exclusion zones, priority display area and more.

Class-leading optical precision

The CR-N700’s high-performance lens has a 15x optical zoom (25.5mm – 382.5mm, 35mm equivalent) plus a 30x Advanced Zoom when shooting in Full HD. And when conditions are unstable, Canon’s renowned Image Stabilizer captures optimal footage.

Award-winning Auto Focus technology

Fast, intelligent, and extremely accurate focusing via multiple modes thanks to Canon’s proprietary Dual Pixel CMOS AF technology with advanced EOS iTR AF X.

Multiple protocols for seamless integration

The CR-N700 features SRT and NDI|HX2 that produce high-quality video streams for broadcasters. RTMP/RTMPS, RTP/RTSP and Canon XC protocol are also included, plus FreeD for integration into virtual productions.

Comprehensive connectivity

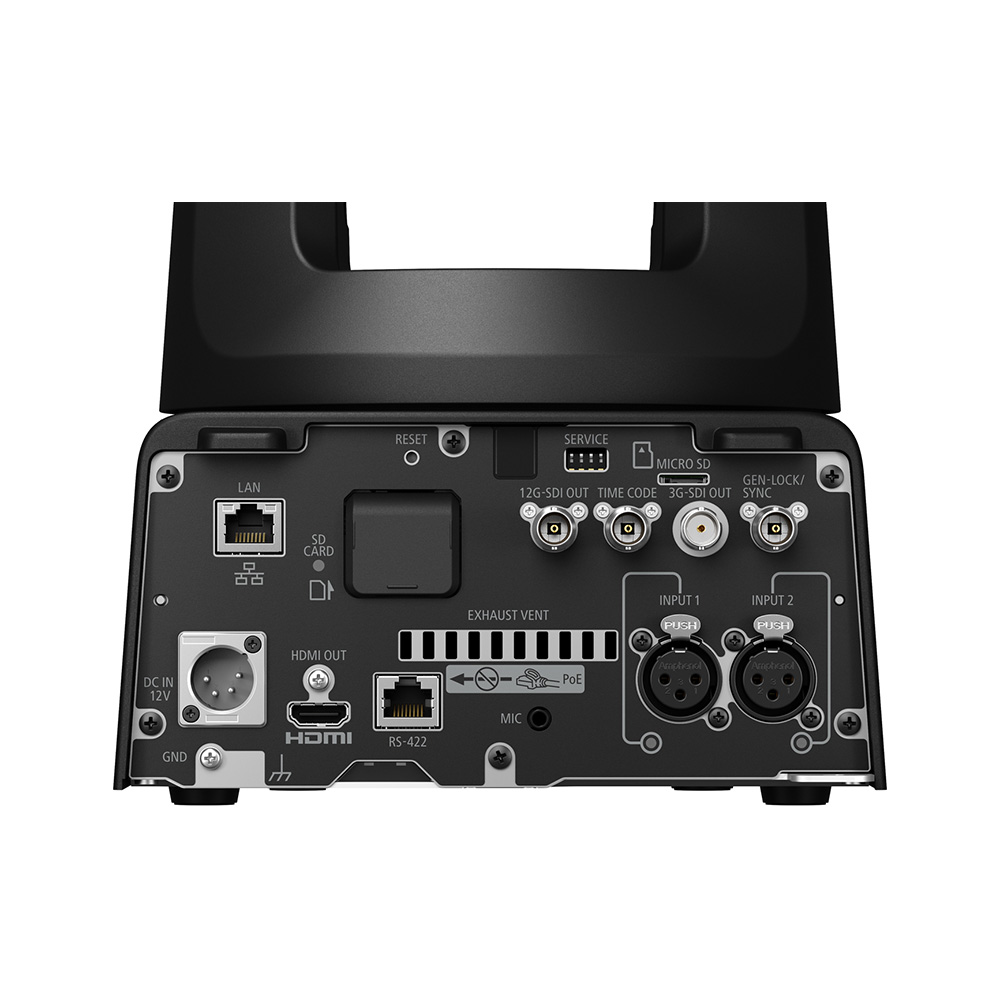

Connect flexibly with 12G-SDI, HDMI or IP (PoE++) all supporting 4K60P, as well as professional dual XLR audio inputs. CR-N700 also includes 3G-SDI and GEN-LOCK.

Powerful HDR imagery and low-light capture

Achieve stunning HDR imagery with direct recording into either PQ or HLG formats. A range of custom picture settings includes Canon Log 3 and Wide Dynamic Range to match other Canon cameras’ look.

Smooth and precise control

The CR-N700 has a high-precision drive mechanism for fine Pan and Tilt movement as slow as 0.1°/s. Compatible with the RC-IP100 controller and Remote Camera Control Application controllers, it can also be configured with selected third-party units.

Crop function – single camera, two video feeds

Select and extract a point of interest via a separate feed. The chosen area can then be output as a main or secondary signal and up to two cropped areas can be set in FHD.

Night Mode

Capture footage in near-darkness thanks to IR Mode, which extends the spectrum visible to the camera.

1 Auto Tracking app: paid licence required

2 NDI is a trademark or registered trademark of NewTek, Inc. in the United States and other countries

View the full specifications in the brochure
