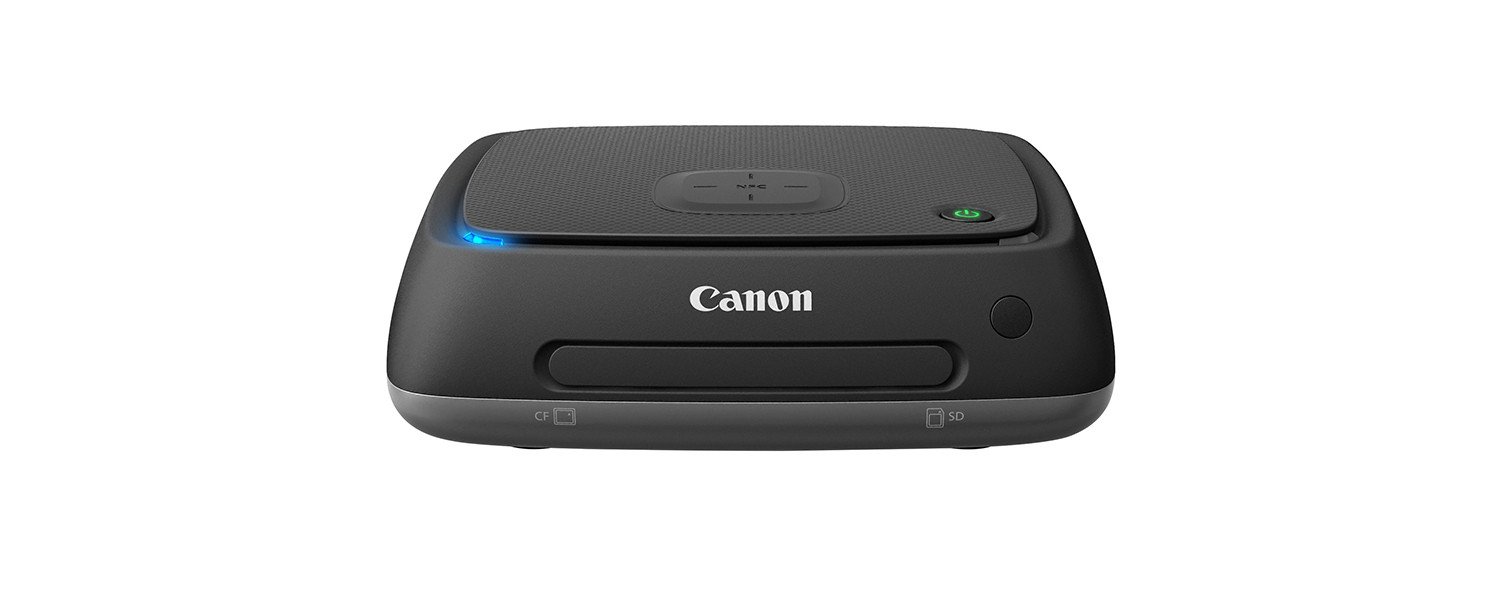

Connect Station CS100


SKU: 9899B004AA


An easy way to store, view and share your photos and movies in one place

Discover the easy way to store, enjoy and share your photos at home. Transfer your latest adventures with just one tap of your NFC camera or easily upload and download images from your smart device via the Connect Station app. Then enjoy them on your HDTV or share with friends and family online.

  • Effortlessly transfer photos and movies from camera, PC or card
  • Easily share to and from smart devices using the Connect Station app
  • Enjoy photos and movies from your different devices in one place

Easy image transfer

Quickly import images from your NFC camera, PC, memory cards and USB devices

NFC and Wi-Fi technology allows you to easily transfer your latest photos and movies to the Connect Station from a Canon NFC enabled camera or camcorder with just one tap. Wirelessly import existing images from the library on your PC via your home Wi-Fi network* or use the memory card slots and USB connection to import your latest creations from multiple devices. It means you can enjoy all your precious moments on your big screen at home in next to no time.

*enabled with free firmware update available May 2016

Dedicated smart device app

Quick and easy file download and upload from your smart devices

Download the free Connect Station app for iOS and Android devices and connect automatically to your smart device for quick and easy file browsing, transfer and sharing. You can effortlessly download or upload images as well as view and organise them on the Connect Station via an easy-to-use interface, which is optimised for both tablet and phone.

Store photos and movies from your different devices to one place

Bring all your photos and movies together in one place thanks to connections with multiple devices and the Connect Station?s 1TB hard drive. The easy-to-use interface makes organising photos into albums and viewing your photos and movies simple. You can back up to an external 1TB external hard drive for added peace of mind.

Share images to social media, the cloud or another Connect Station

Share your photos to your social networks or another Connect Station quickly and easily. You can upload content to cloud services or social media like Flickr?, Facebook?, Google? and irista for easy back up and sharing. An HDMI output allows you to enjoy Full HD images with family and friends on your TV.

Print straight from your Connect Station to your wireless printer

Browse. Select. Print. The Connect Station links to your wireless printer giving you the freedom to print your images to hang at home or share with your family and friends. Simply explore your photos on your TV and choose your favourites to print.




Internal hard disk capacity

Approx. 1 TB?


Wi-Fi standard compliance

IEEE 802.11b/g/n

Transmission range

Up to 15 m





NFC connectivity


Wired Ethernet

10BASE-T, 100BASE-TX, 1000BASE-T

USB connection

Hi-Speed USB (USB2.0)

HDMI connection

Type A, CEC-compatible

Memory card slots

CF memory card slot (CF card type I or II)

SD memory card slot (SD, SDHC, SDXC)

Supported File Formats


JPEG (EXIF compliant) / RAW (Canon .CR2 only)


mp4, mov, AVCHD


Supported Wi-Fi printers

PictBridge via wireless LAN compatible printers

Connection modes


Print Layout

Borderless / Bordered

Without date / With date

Remote Control CS-RC1


Two AAA/LR03 batteries

Dimensions (W x H x D)

Approx. 41.3 x 15.1 x 125.5 mm


Approx. 42 g (excluding batteries)

Power Supply

Rated input

100 – 240 V AC (50/60 Hz)

Working temperature range and humidity

0?C – 40?C / 32?F – 104?F, 85% or less

Dimensions (W x H x D)

Approx. 112 x 29 x 45 mm


Approx. 185 g (excluding power cord)

Physical Specifications


Approx. 155.6 (W) x 51.1 (H) x 155.6 (D) mm


Approx. 570g

Operating temperature range & humidity:

0?C – 40?C / 32?F – 104?F, 85% or less

Power Consumption

During operation: Approx. 10 W

Standby: Approx. 9.5 W

Supported languages

English, French, Italian, German, Spanish, Portuguese, Japanese, Simplified Chinese, Russian, Korean, Traditional Chinese


[1] Figure is approximate as the system uses a small proportion of the available capacity.

  1. Keep your NFC enabled devices and contactless payment cards separate.
  2. This function is intended for Canon cameras and camcorders featuring an NFC function supporting the Connect Station.
  3. Images stored in a folder compliant with the DCIM or AVCHD folder structure are imported. Compatible with Canon cameras and camcorders released in 2010 and later.
  4. Some features require a CANON iMAGE GATEWAY account. CANON iMAGE GATEWAY may not be supported in some countries or regions. Please visit for more information.
  5. Connected using PTP (Picture Transfer Protocol). Compatible with Canon cameras and camcorders released in 2010 and later.
  6. PictBridge (wireless LAN) compatible printer.

Google and the Google logo are registered trademarks of Google Inc.

When you are using Connect Station CS100 in network environment, please make proper security settings for network devices including access points and routers.

All preceding specifications are based on Canon testing standards.

Product specifications and the exterior are subject to change without notice.
